5 Axis High Speed CNC Machining Facility

5 Axis High Speed CNC Machining Facility





5 Axis High Speed CNC Machining Center

Description

Specification

Model

Breton Matrix 800

Table Size

2000 mm X 3000 mm

Traverse

X-2000 mm

Y-2500 mm

Z-800 mm

A  -  ± 105 deg.

C  -   0 to 360 deg.

Spindle Taper

HSK63A

Spindle Speed

28000 rpm

Spindle Power

20kW

ATC

Umbrella type with 30 tools

CNC Controller

Sinumerik  840D

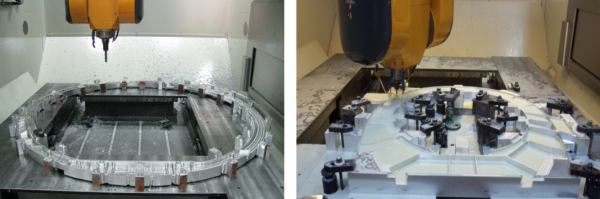

Potential use of the facility  : 5 Axis CNC machining of complex  aircraft components viz., Bulkhead Frames, Spars, Fittings; Tools, Moulds etc.
