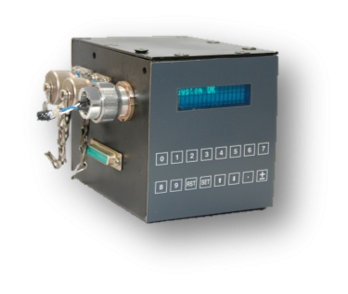

Enhanced Fatigue Meter (eFM)
Enhanced fatigue meter is the latest state of art system with a microprocessor and MEMS accelerometer, which monitors the fatigue life of aircraft by computing the 'g' crossings and the fatigue index
Physical Dimensions
Dimension : 135x96x115mm
     Weight : 1.2 Kg
        Color : Black Anodized
   Material : Aluminum Alloy

SALIENT FEATURES:
•    Senses the ‘g’ peaks and troughs for determining the fatigue index
•    Configurable to accept ‘g’ input from both internal as well as external accelerometer
•    Onsite flight configuration by authorized crew using the system or  PC
•    USB interfaces for data milking and communication between Unit and PC.
•    ARINC429 and RS422 for communication between eFM and other LRUs
•    Capable of storing minimum 300 flight data (2 G bytes) and expandable.

APPLICATIONS
Defence, Civil and UAV.

eFM logs the peak & trough data and the continuous ‘g’ data with time stamp which helps maintenance crew to determine the aircraft structural fatigue & generate the ‘g’ profile of a sortie with minimum logs of data.
